Project: Product Design - Electrical Cabinet.

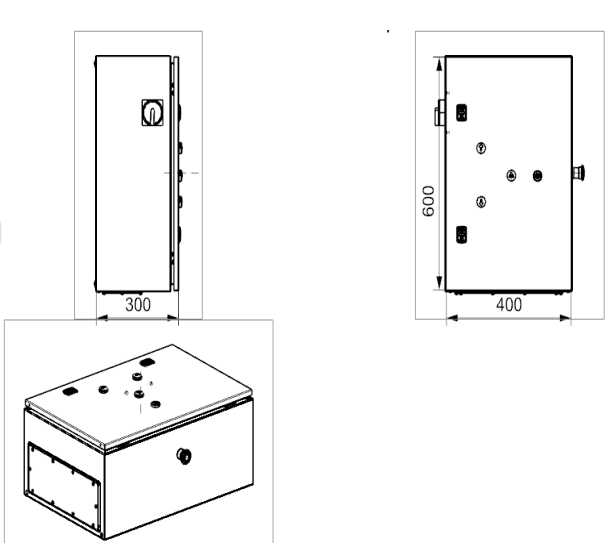

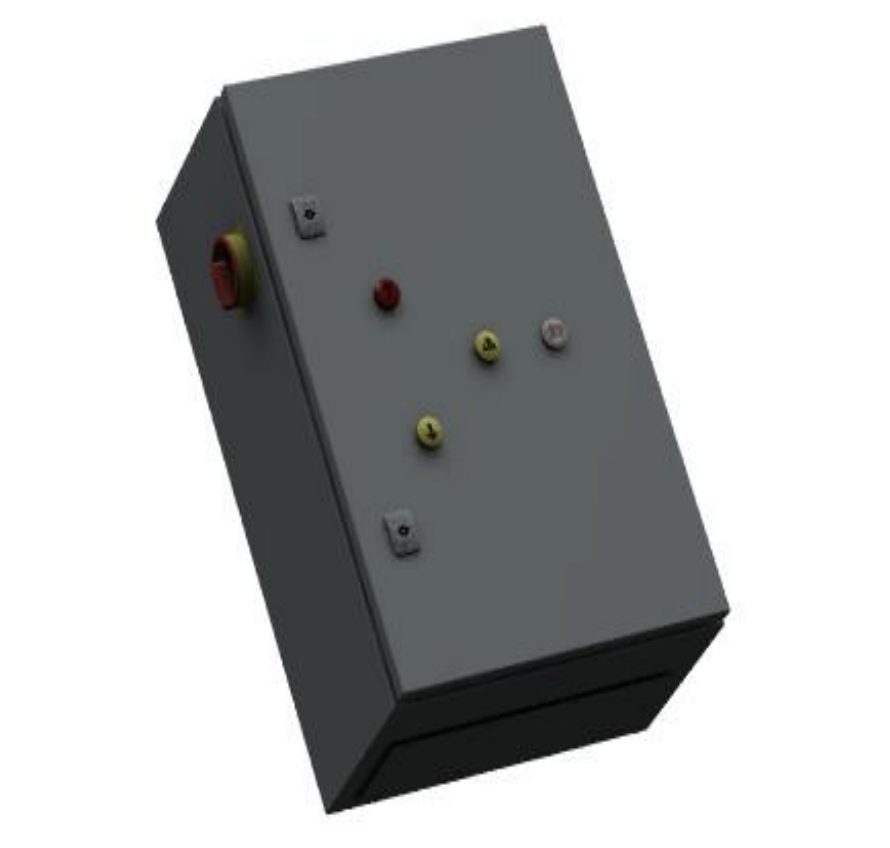

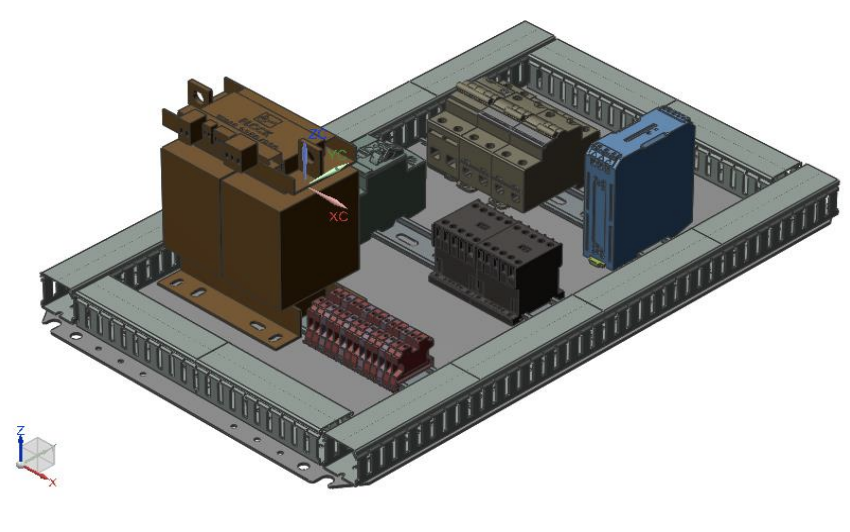

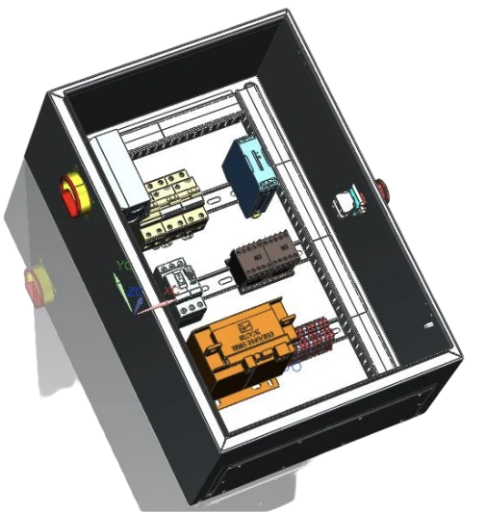

The design process for an electrical cabinet required several steps and important considerations. First, a thorough analysis of the necessary requirements and specifications was conducted, taking into account the electrical components and devices that would be installed in the cabinet. Next, the CAD design was carried out in Nx, taking into account current regulations and safety standards. Once the layout was defined, the appropriate materials were selected, considering the strength and durability required to ensure optimal cabinet operation. The cabinet was then built, assembling the components and carefully making the electrical connections. Finally, the necessary checks were carried out and adjustments were made to ensure proper performance.
